About Stack Parking

• As the name suggests, Stack Parking stacks car one on top of another.

• It is very simple but efficient car parking system that doubles or triples parking spaces.

• It can be dependent or independent, and access to the parking spaces is horizontal.

• The stack parking system is operated with key switch to run operation on operator box mounted with clear visibility of parking system.

WHY US ?

Parking lots and parking decks usually have a finite amount of space available for vehicles. It may not be possible or economically feasible to extend the boundaries of a parking lot or construct another parking deck in many cases, which limits the number of cars that can be parked. This is a problem affecting a lot of Residential. Commercial and Hospitality Projects in the metros where plots are relatively smaller.

Our Parking Systems can be customized to suit your requirements as per the site plan and constraints and we strive to find unique and Cost effective solutions to maximize the parking potential on any plot.

Our Team

Our organization is privileged to collaborate with a dedicated and highly skilled team of industry experts. Their unwavering commitment enables us to execute projects efficiently and deliver superior lifts, elevators, parking systems, and other products to our esteemed clients. With their extensive experience and profound knowledge of machinery and machining techniques, our professionals equip us with the critical expertise necessary to maintain a competitive edge in the industry.

Our Strength

We are dedicated to maintaining ethical business standards and implementing robust management and administrative frameworks designed to optimize the benefits for our esteemed clientele. Our organization provides a variety of flexible payment solutions and prioritizes transparency in all our business interactions. Our team of professionals engages in direct communication with clients to deliver highly tailored and effective solutions. The following attributes position us favorably against our competitors:

State of the art manufacturing unit
Qualitative products
Experienced workforce
Competitive prices
Prompt deliveries

“Our Parking system is committed to excellence in the quality of products we provide to our esteemed clients. We achieve this by utilizing only premium-grade raw materials, meticulously sourced from reputable vendors throughout our manufacturing process. Our production operations are conducted under the stringent oversight of seasoned professionals, ensuring adherence to internationally recognized quality standards. Furthermore, we implement comprehensive testing protocols across our entire product range to guarantee impeccable quality, authenticity, and a zero-defect outcome. This unwavering commitment to quality has enabled us to cultivate the trust and confidence of a diverse clientele.

"We pledge to deliver innovative, space-saving car parking solutions—engineered for reliability, built for the future."

Our Products

We make every moment count with solutions designed just for you.

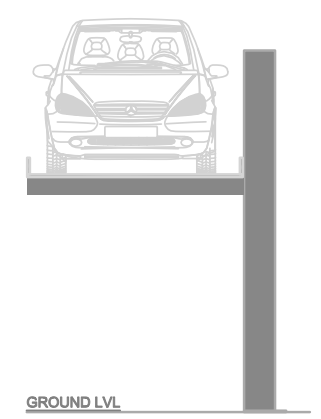

CANTILEVER STACK PARKING

This system is engineered to accommodate a single vehicle on the platform, ensuring that the ground level remains unobstructed for efficient vehicular movement.

The structural design incorporates columns exclusively on one side, typically aligned with the boundary, thereby maintaining a clear and accessible driveway for seamless traffic flow.

THREE LEVEL WITH ONE PIT LEVEL STACK PARKING

This parking system is designed to accommodate three vehicles: one at ground level, one on the first elevated level, and one within the Pit. To retrieve a vehicle from either the first elevated level or the Pit, it is necessary to first remove the vehicle parked at ground level.

Please Note: Maximum height of the pit level depends upon the clear height above the ground level

THREE LEVEL WITH TWO PIT LEVEL STACK PARKING

This facility accommodates parking for three vehicles, with one located at ground level and two situated in the Pit. To access the vehicle parked on the first level of the Pit, the ground level vehicle must be removed. Additionally, to retrieve the vehicle on the second level of the Pit, all vehicles above it must be cleared first.

Please Note: Maximum height of the pit level depends upon the clear height above the ground level

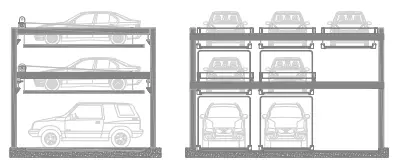

THREE LEVEL SIMPLE STACK PARKING

This is Parking System offers parking for 3 cars; one on the ground and two on the two upper levels. The car on the ground level will need to be removed before lowering the first level platform; similarly the ground and first level cars will need to be removed before lowering the second level platform.

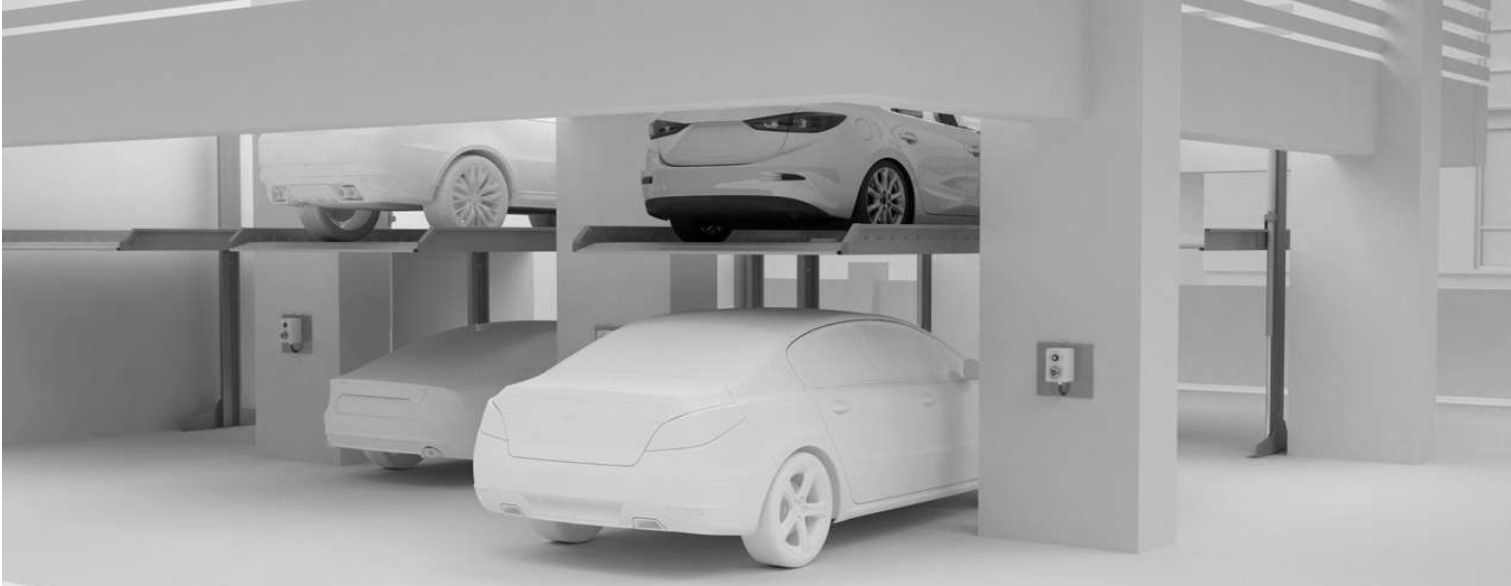

TWO LEVEL STACK PARKING

This is a two-tier parking system, where one vehicle is stationed at the ground level and another is positioned on the elevated platform. To facilitate the retrieval of the car from the platform, it is necessary to first relocate the vehicle on the ground level.

PUZZLE STACK PARKING SYSTEM

This automated parking system is designed to allow for the independent retrieval of vehicles without the need to remove other cars, thereby enhancing operational efficiency. The system can be configured to extend horizontally across a maximum of 10 columns and vertically up to 10 levels. It is important to note that the number of slots required to remain vacant is calculated as X-1, where X represents the total number of levels.

Requirement from Client

Essential requirements from clients for better Service

Parking area allotted must be cleared with no obstructions.

During the erection of the system client should provide storage facilities for keeping our tools and other valuable parts of the system.

Additional space to be provided for storing and installing the Power Pack system

Temporary Electrical connection must be provided at the time of erection and installation of the systems.

12 Amps MCB and Main Electrical Connection (or 4 Pole RCBO) along with electrical cable fitting must be provided from the Main Power supply to the parking systems. With 3Ph 415V AC, 50Hz with Neutral and Earth (3Ph+N+E).

Incoming Cable Size should be at least 5 Core x 2.5 sq.mm. Flexible Copper multi Core cable (3PH+N+E) from Main Switch to Control Panel.

Civil work as foundation for stack parking system must be done at stack parking allotted area prior to installation.

Base area of the parking space allotted shall be Concrete with minimum strength of M20.

In case of Parking Installed in open to Sky location, it is recommended to have a weather covering over the Installation to prevent damage to the electronics / mechanism due to weathering.

Standard Feature

Following are the standard features

Hot dipped Galvanized Corrugated floor plates to reduce dead weight and increase durability..

Color scheme for the System will be provided as per the Client's requirement.

Compact Power pack system with enclosed motor and rubber bush fittings for reduced noise levels.

Optional photo sensor for the bottom car to prevent accidental lowering of upper stack.

Electromagnetic locking mechanism to prevent unwanted lowering of upper stack.

limit switches to restrict the travel height by auto cutting off the motor.

Remote switch box with key/pushbutton for easy operation.

Emergency shutdown switch.

Performance Specifications

Description

Multi parking system for dependent parking of 2 vehicles one on top of the other. The lower vehicle parks directly on the floor plate. The lower vehicle must exit before the platform is lowered.
Unweighting to 2600 kg is subsequently possible.
Dimensions in accordance with the underlying building, width and height dimensions.
Access to the parking spaces horizontally (installation tolerance ± 1%). Vehicle positioning in the upper parking space by positioning aid mounted on one side (to be adjusted in accordance with the operating instructions).
Control via an operating element with automatic reset by means of simultaneous key.
Operating element usually installed in front of the support or on the outside of the door reveal.
Concise instructions at each operating point.
Special dimensions must be observed in buildings with door.

Multi parking System Comprising:

2 columns with column bases secured to the floor
2 sliders (with sliding guides secured to the columns)
1 platform
1 mechanical synchronisation system (for synchronized operation of the hydraulic cylinders when lifting and lowering)
1 hydraulic cylinder
Dowels, screws, connectors, bolts, etc.
The platforms/parking spaces are continuously accessible.

Platform Comprising:

Platform profiles
Adjustable positioning aid
Chamfered ramp
Side beams
Screws, nuts, washers, spacers, etc.

Electrical System Comprising

Operating element (emergency-stop, key, 1 simultaneous key per parking space)
Junction box on wall valve
Electrical locking

Hydraulic System Comprising

Hydraulic cylinders
Magnetic valves
Hydraulic lines
Bolted connections
High-pressure hoses
Attachments

Hydraulic unit comprising

Hydraulic unit (low-noise, fitted to bracket and bearing mounted on rubber-metal block
Hydraulic oil tank
Oil filling
Internal gear pump
Pump holder
Coupling
Three-phase motor
Circuit protection (with thermal overload relay and control fuse)
Test pressure gauge
Pressure relief valve
Hydraulic hoses (to attenuate noise transmission to the hydraulic pipes)
